Product Range
Three Core Grades
Formulated to meet diverse industrial requirements -- from standard operations to eco-sensitive environments demanding ultra-low emissions.
Standard Electrode Paste
Reliable performance for conventional submerged arc furnaces. Balanced formulation delivering consistent sintering and stable electrical conductivity.
- Ash content ≤ 4%
- Resistivity ≤ 75 μΩ·m
- Suitable for ferroalloy & calcium carbide
Sealed Electrode Paste
Premium low-ash formulation for demanding applications requiring superior conductivity and reduced slag contamination in high-purity production.
- Ash content ≤ 3%
- Resistivity ≤ 65 μΩ·m
- Ideal for ferroalloy and industrial silicon production
Custom Electrode Paste
Tailored formulation based on your furnace specifications. Designed to reduce electrode paste consumption and minimize unplanned shutdowns for smelting operations.
- Optimized for your furnace parameters
- Lower paste consumption per ton
- Fewer maintenance shutdowns
Why Saxin Carbon
Performance You
Can Measure
Superior Electrical Conductivity
Optimized carbon structure ensures low resistivity, reducing energy consumption per ton of output in your furnace operation.
High Mechanical Strength
Compressive strength exceeding 18 MPa prevents electrode breakage, minimizing costly downtime and material waste.
Consistent Batch Quality
Strict QC at every production stage ensures each delivery meets the same performance parameters -- no surprises on the production floor.
Reliable Lead Times
Large inventory and flexible production scheduling support both spot orders and long-term supply contracts with on-time delivery.
Clients Served
Years Experience
Tons / Year
Technical Data
Full Specifications
All products comply with Chinese national standard GB/T 2459 and are available with third-party test reports upon request.
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Resistivity (μΩ·m) | 65 max | Volatile Matter (%) | 10 - 15 |
| Ash (%) | 3 max | Compressive Strength (MPa) | 19 min |
| Apparent Density (g/cm³) | 1.46 min | Real Density (g/cm³) | 2.02 min |
| Plasticity (%) | 20 - 40 | Bending Strength (MPa) | 4.9 min |

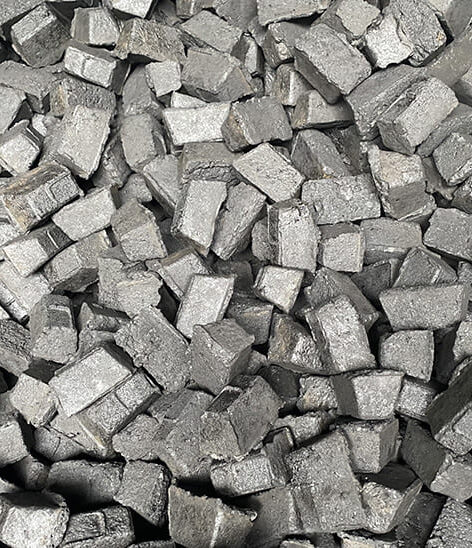

| Size | Briquette: 60×90×120mm | Egg-shape: 52×70×120mm | Cylinder: Customized | ||
Remark: Specifications and sizes can be customized according to client's furnace info.
Third-party test reports available upon request
Industries Served
Proven Applications
Saxin Carbon electrode paste powers critical processes across heavy industry -- wherever a reliable self-baking electrode is essential.

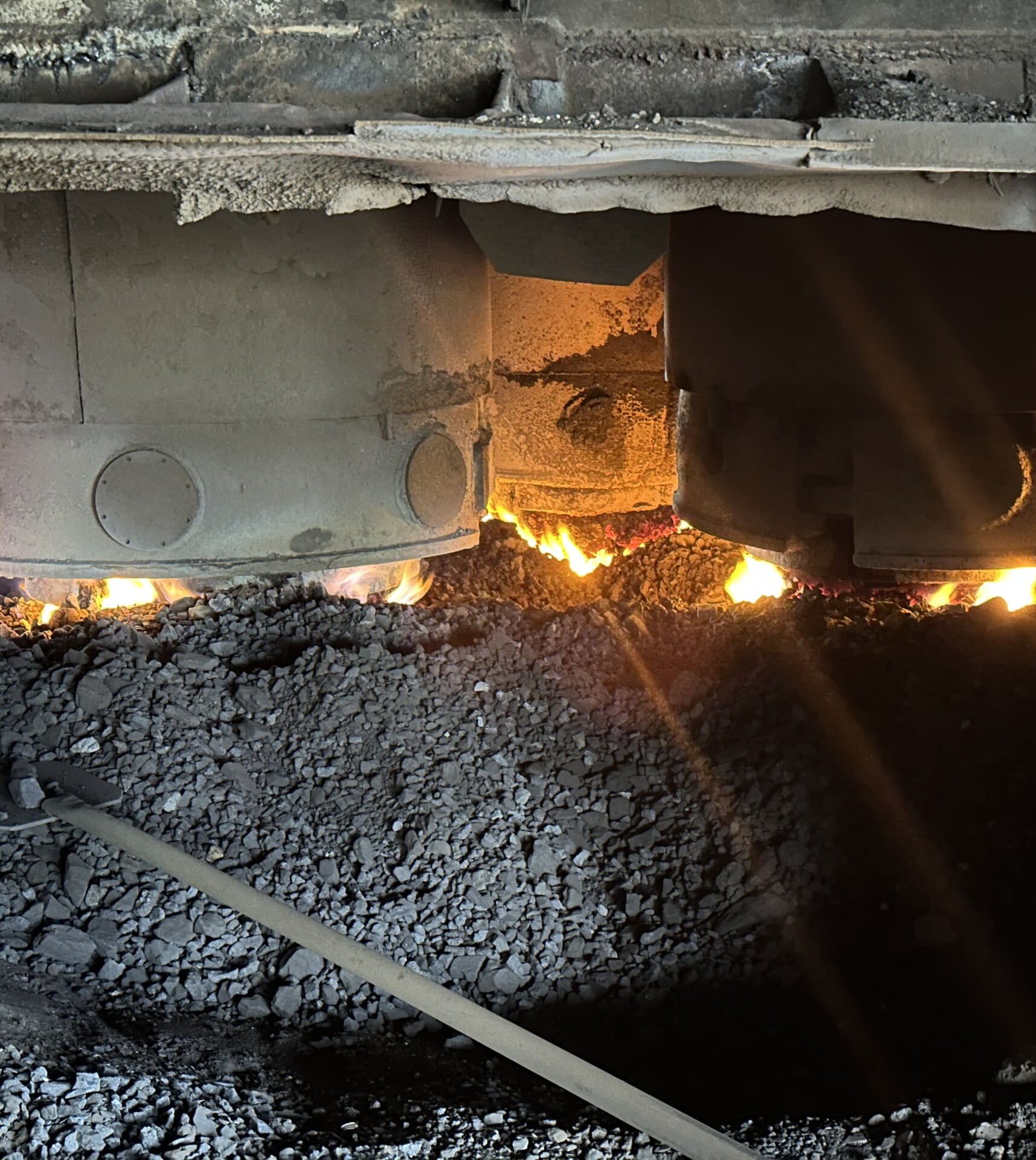

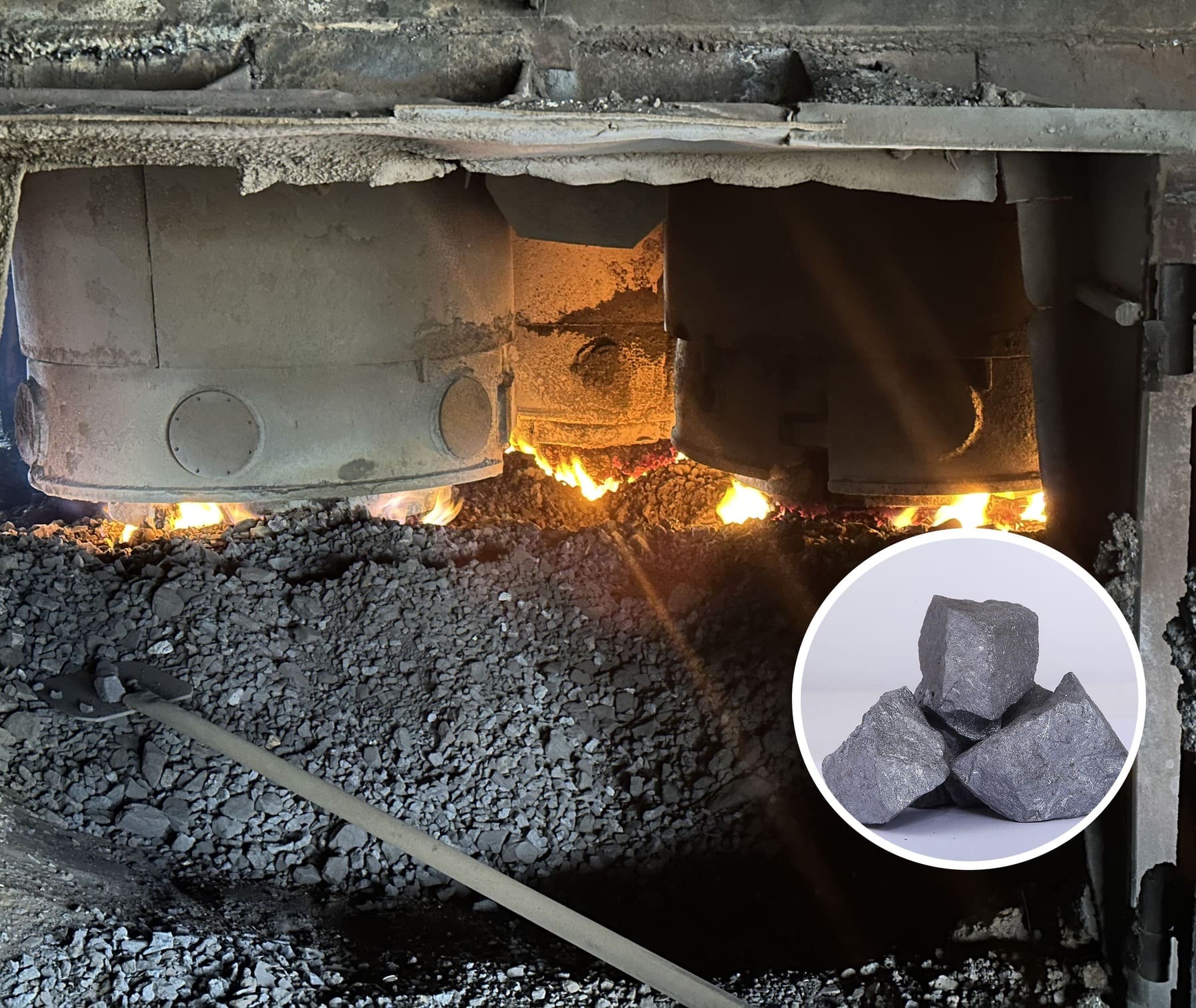

Ferroalloy Smelting
FeSi, FeMn, FeCr production in submerged arc furnaces demanding consistent electrode performance.

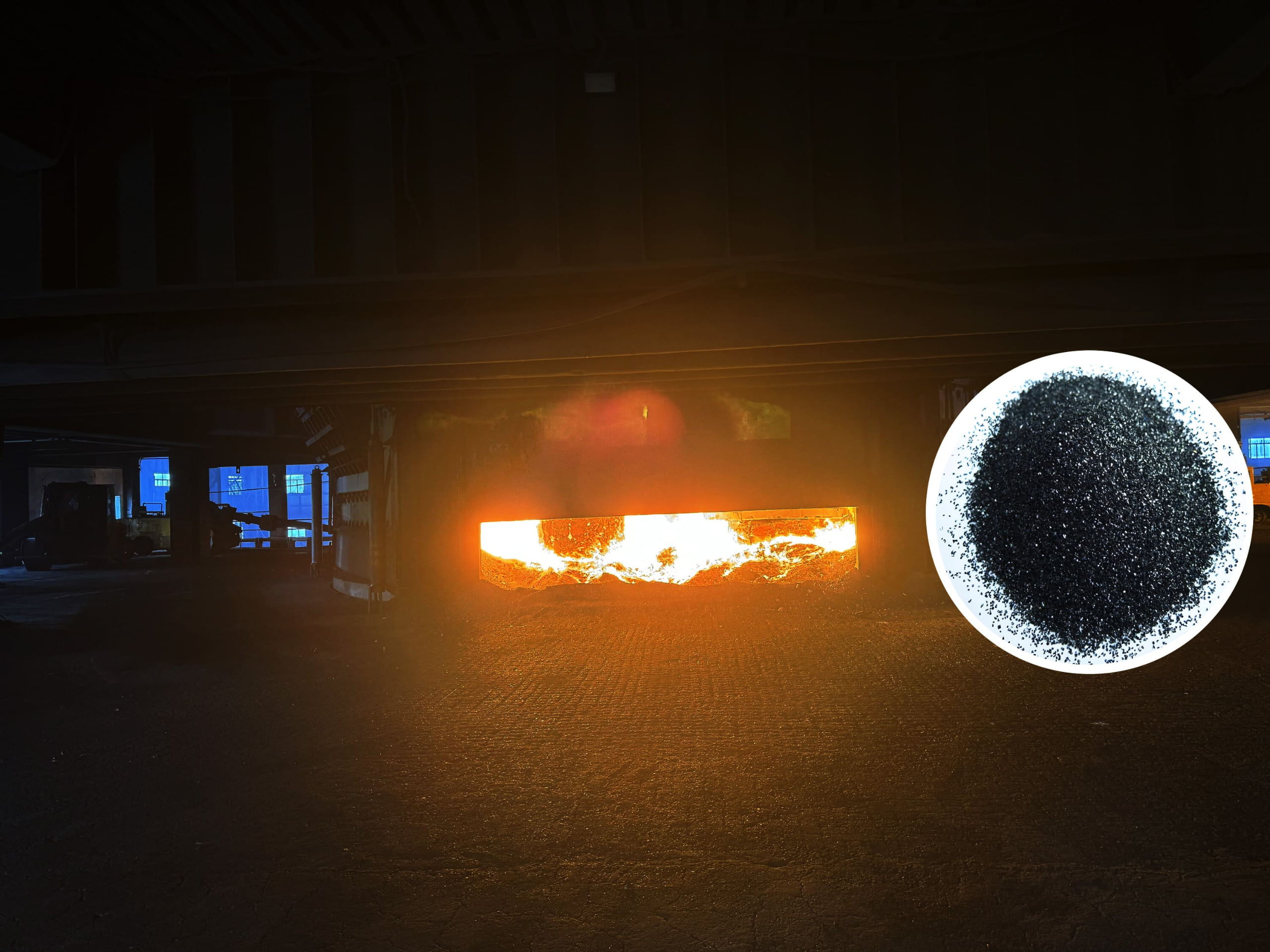

Calcium Carbide
High-load furnace operation for CaC₂ production requiring electrodes with excellent thermal stability.

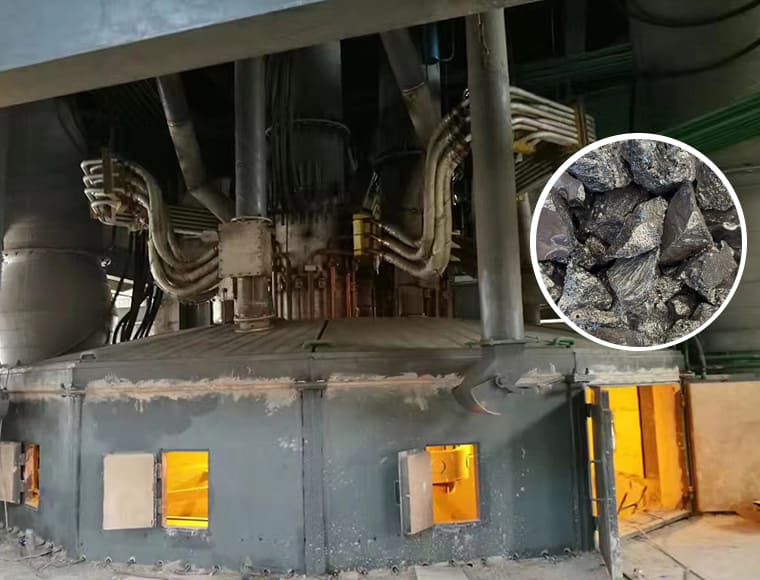

Industrial Silicon
Ultra-low ash grades for Si metal production where purity of the final product is paramount.

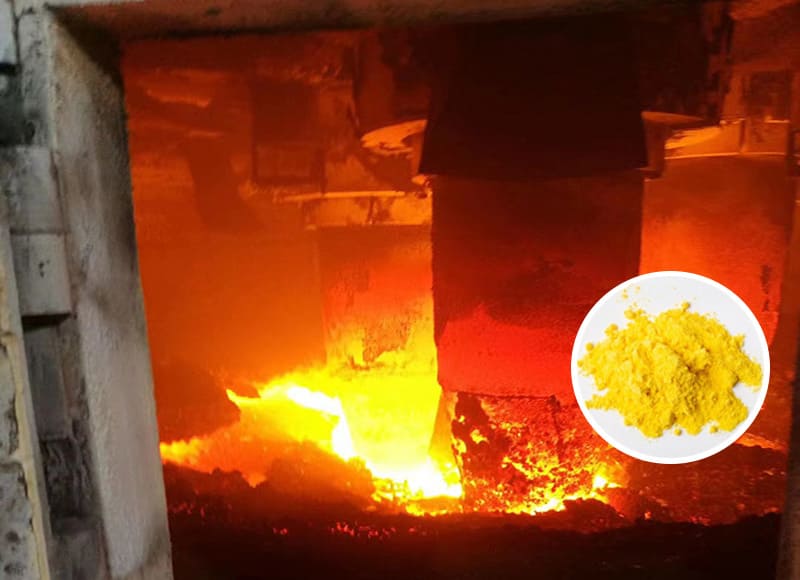

Phosphorus Smelting
Yellow phosphorus electric furnaces operating at extreme temperatures and current densities.
Why Trust Us
Built on Transparency & Results
Years of Industry Experience
Decades of focused expertise in electrode paste production, serving ferroalloy smelting, calcium carbide, and industrial silicon enterprises with proven reliability.
Quality Assurance

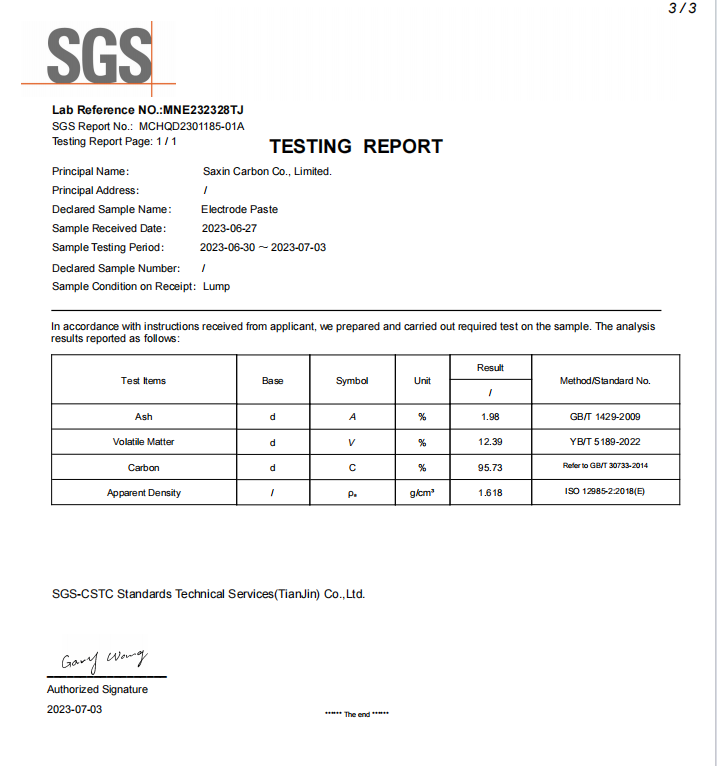

Third-Party Test Reports
Independent laboratory analysis available for every batch. Full transparency on ash content, resistivity, and mechanical strength values.
Ash Content
Resistivity
Strength
Compliance & Standards
National Standard Compliance
All products manufactured and tested in strict accordance with GB/T 2459 and relevant Chinese national standards, ensuring consistent quality across every delivery.
Primary Std.
Quality Mgmt.
"Switching to Saxin Carbon's low-ash electrode paste reduced our electrode consumption rate by approximately 8% and improved furnace stability significantly. The consistency between batches is exceptional."
-- Procurement Manager
Ferroalloy Production Enterprise, Inner Mongolia
How We Produce
Manufacturing Process
Every step governed by strict quality protocols and national standards -- from raw material to finished product.

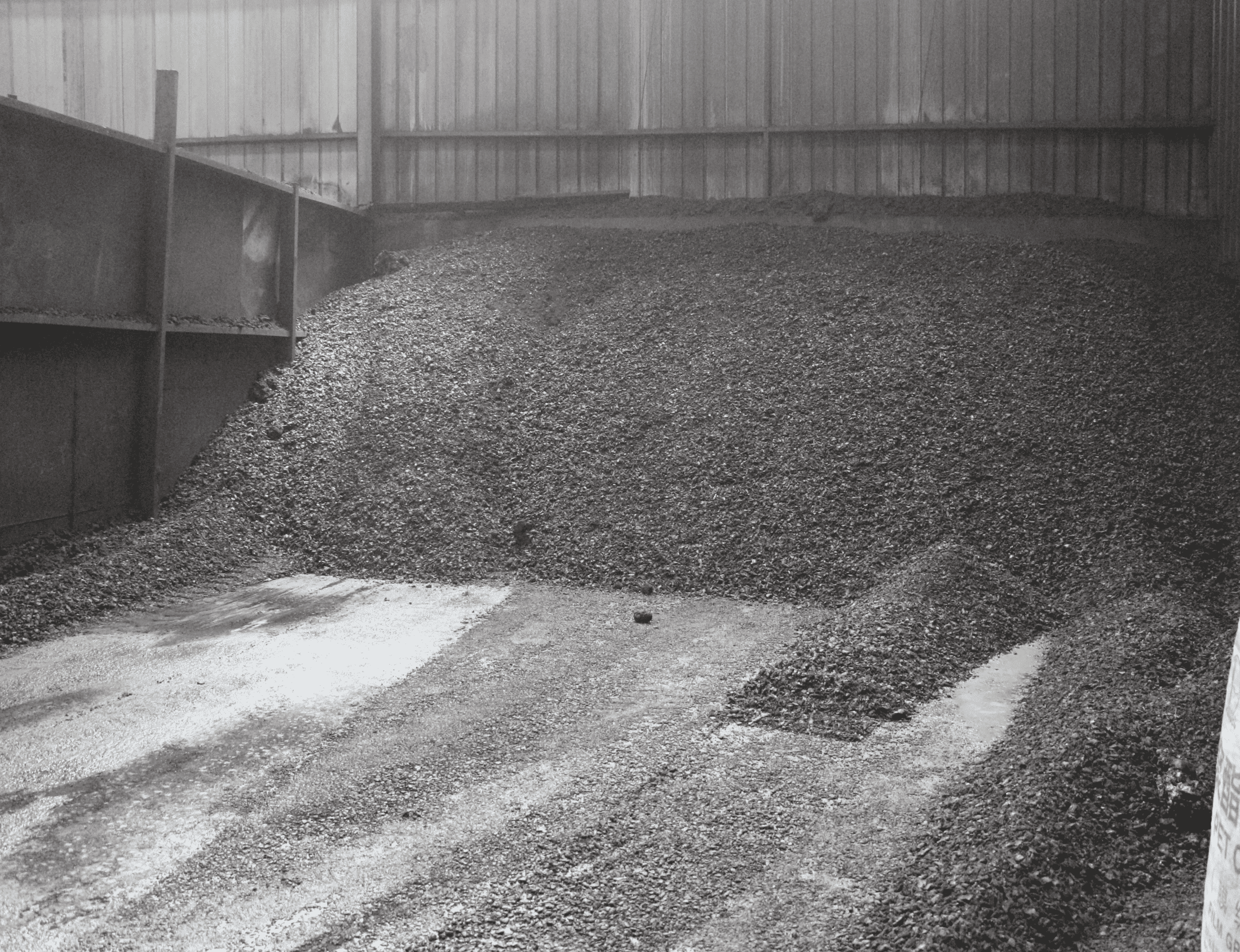

Raw Material Proportioning
Calcined anthracite, petroleum coke, and additives are precisely weighed and batched to achieve target particle-size distribution and chemistry.
- Calcined anthracite & pet-coke
- Formula-controlled batching
- Incoming QC analysis

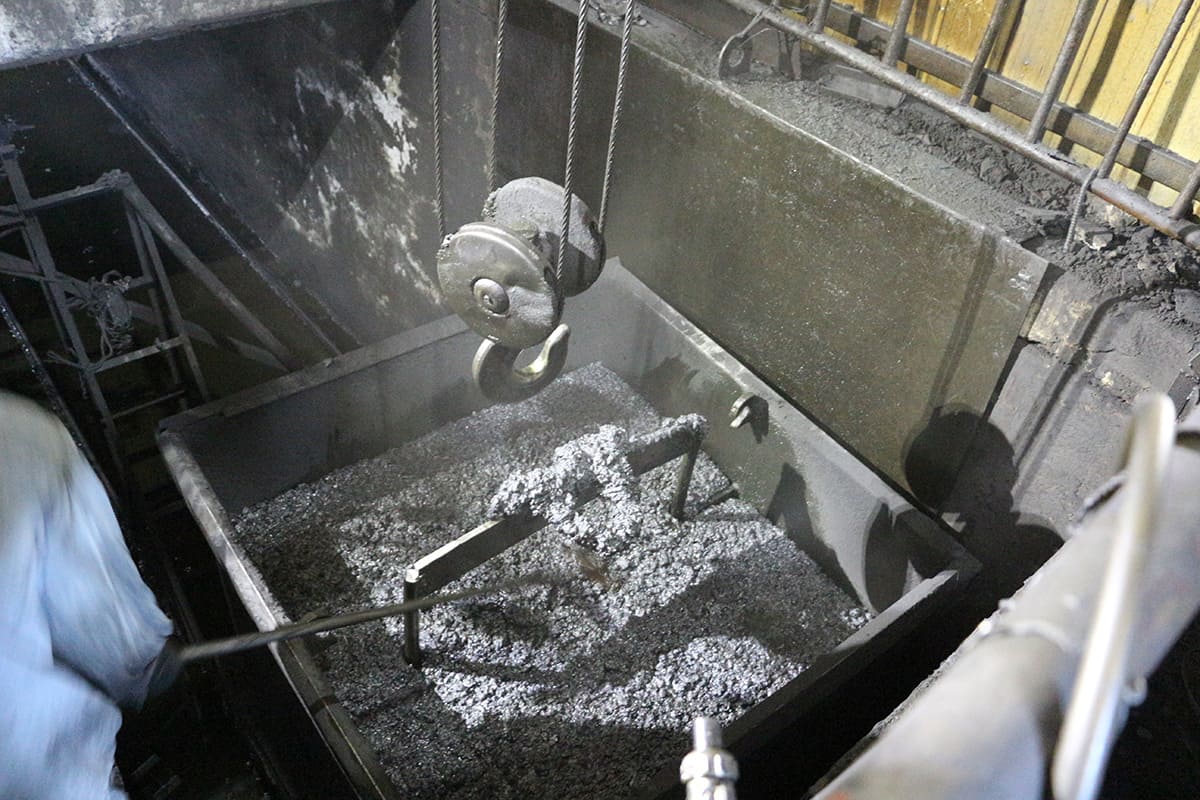

Kneading with Coal Tar Pitch
Dry aggregates are blended with molten coal tar pitch binder at 130-160 °C, ensuring uniform coating and a homogeneous paste structure.
- Coal tar pitch binder
- Heated kneading 130-160 °C
- Uniform binder distribution
Forming
Hot paste is extruded or press-formed into cylindrical blocks or barrel shapes to customer-specified dimensions under controlled pressure.
- Extrusion & press forming
- Cylindrical & barrel blocks
- Custom dimensions available

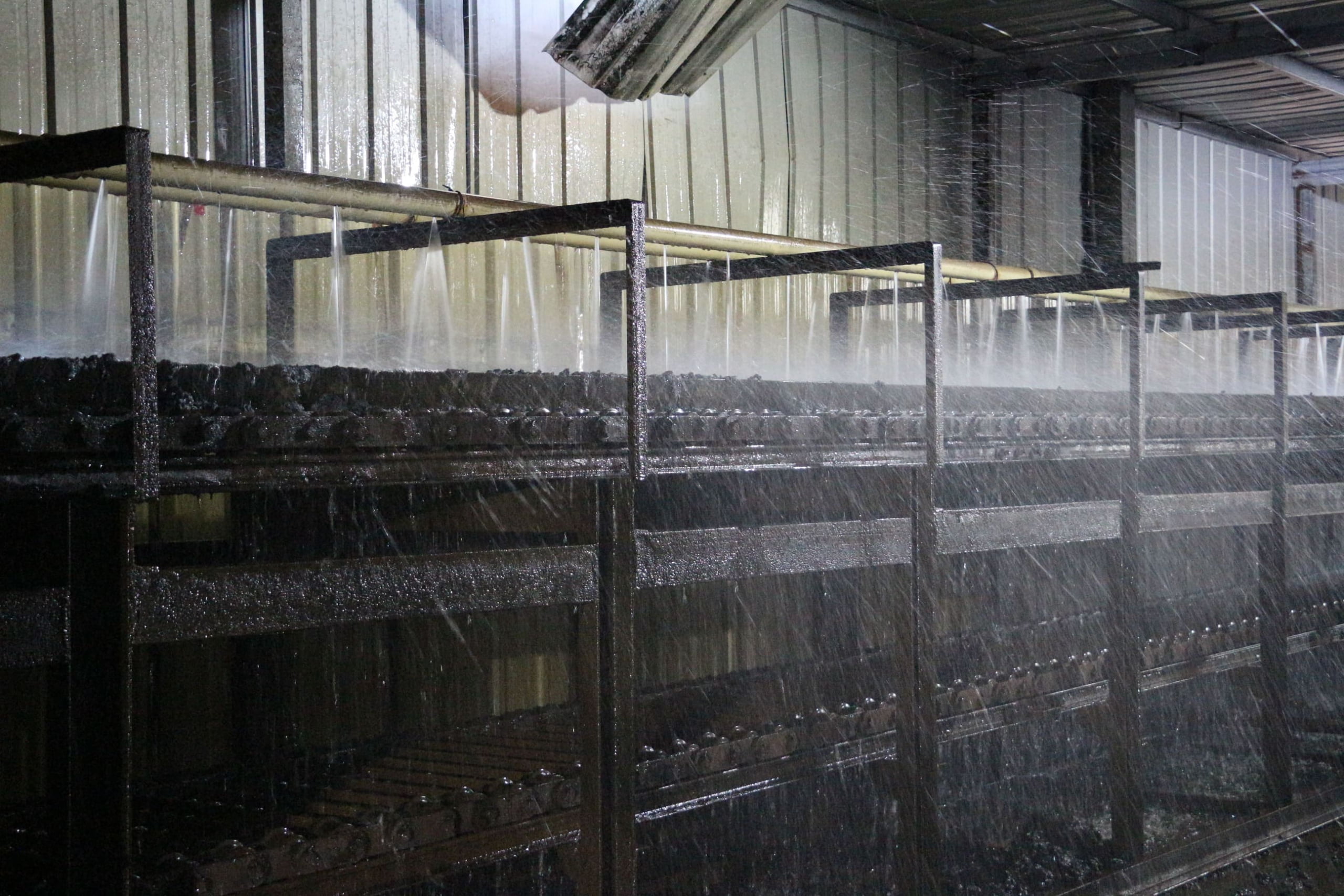

Water Cooling
Formed blocks are conveyed through a controlled water-cooling system to rapidly stabilise structure, prevent cracking, and lock in dimensional accuracy.
- Controlled cooling rate
- Crack & void prevention
- Dimensional stability locked

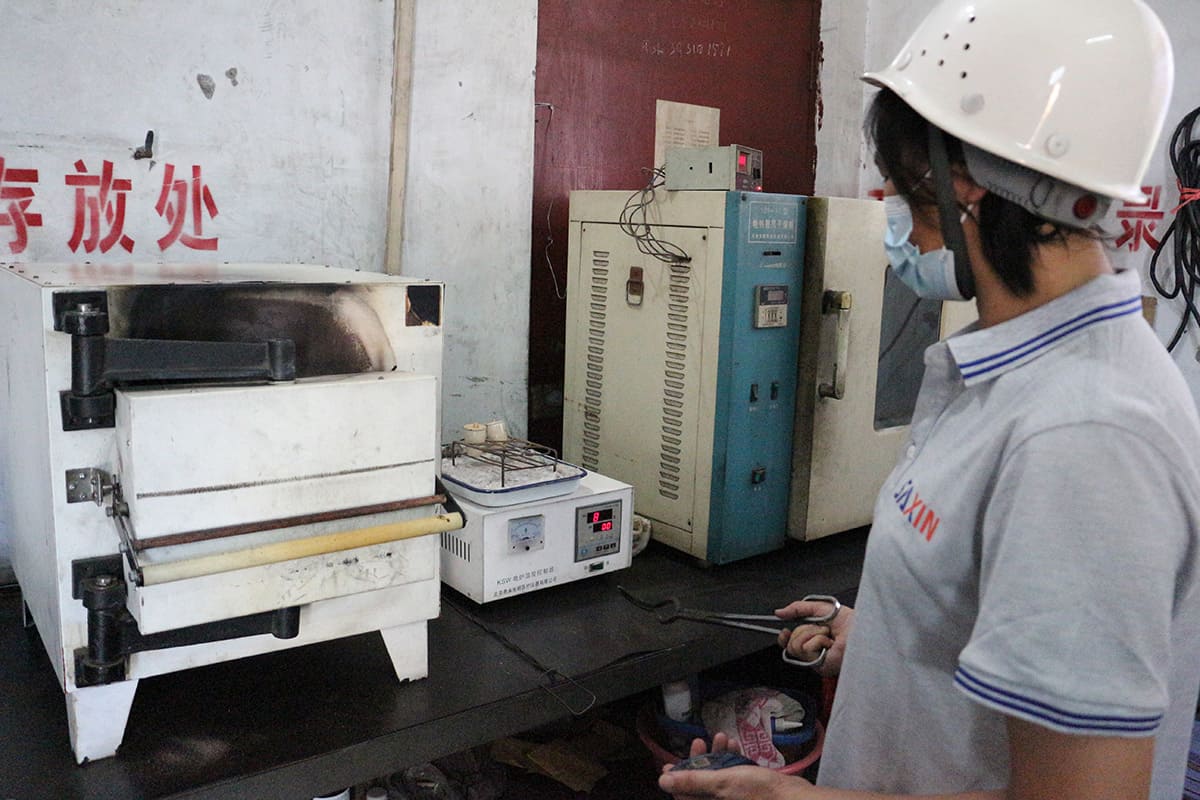

Finished Product Inspection
Every batch is tested against GB/T standards -- ash content, resistivity, compressive strength, and softening point -- with a full QC report per shipment.
Ash
Resist.
Strength
How It Works
From Inquiry to Delivery
Submit Inquiry
Fill out our contact form with your furnace type, tonnage requirements, and delivery timeline.
Technical Review
Our engineers assess your process parameters and recommend the optimal electrode paste grade.
Sample & Approval
Receive product samples with full test reports for your internal qualification process.
Bulk Delivery
Confirm order and receive on-schedule delivery with batch QC documentation included.
